| PRODUCT DESCRIPTION : |

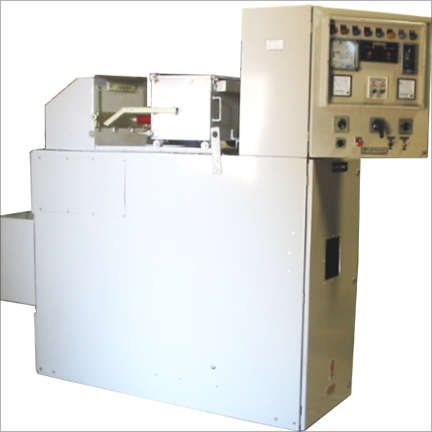

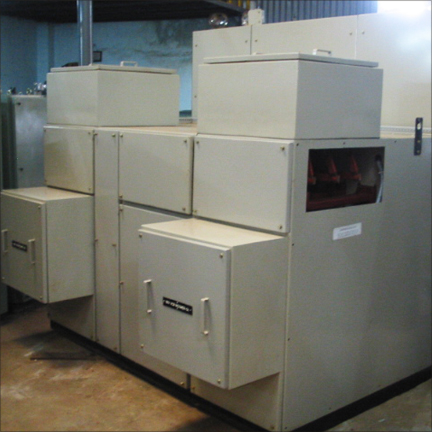

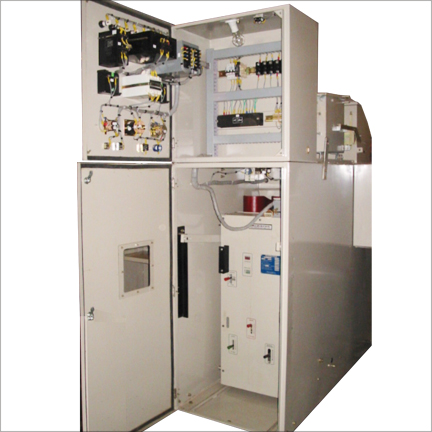

| Metal clad switchgear (Indoor VCB panel) is suitable for indoor power distribution system. |
| TYPICAL APPLICATIONS : |
| Power Distribution. |
| Transformer Switching & Protection. |
| Unitised Sub Stations. |
| Field Switches. |
| Substation Feeders Switching & Protection. |
| SALIENT FEATURES : |
| Earth Switch. |
| On / Off visible through window. |
| Ip54 protection. |
| Cable entry. |

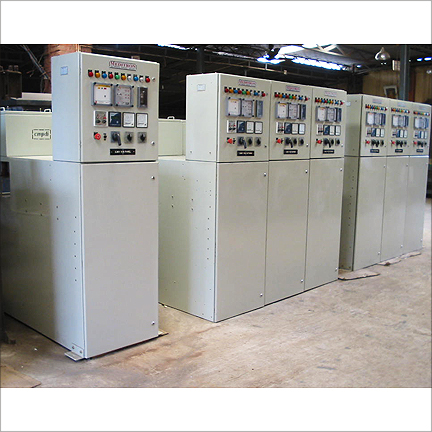

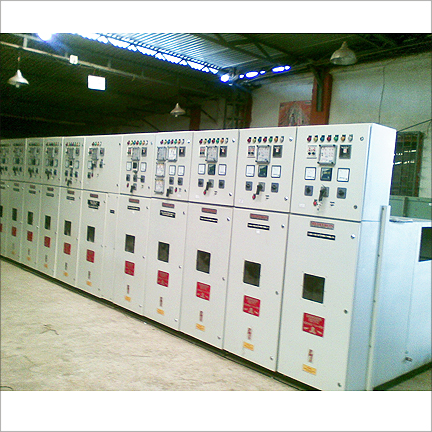

| Group of panels. |
| Draw out / fixed PT. |
| Single person can operate it. No need to use lifter or transfer equipment. |
| Suitable for remote control application. |
| Group of panels. |
| Data logging. |
| Group of panels. |
| Maintenance free operating mechanism. |
| Easy horizontal draw out. |
| Extra protections as per site needs can be provided. |
| Minimum space required. |
| Standard panel size H 2000mm X W 630mm X D 1676mm. |
| SPECIFICATIONS : |
| Rated Voltage: | 12 KV. |
| Rated Current: | Max 1250 A. |
| Rated Frequency: | 50 Hz |
| Rated Short Time Withstand Current: | Max 26.3 kA. |
| Rated Peak Withstand Current: | Max 67.3 kA. |
| Rated Short Circuit Duration: | 26.3 kV |
| Rated Short Circuit Breaking Current: | 26.3 kV |
| Rated Short Circuit Making Current: | 26.3 kV |
| Rated Power Frequency Withstand Voltage: | 28 kV |
| Rated Lightning Impulse Withstand Voltage: | 75 kV |
| Voltage of Spring Charging Motor: | AC (DC) 110 / 230 V |
| Power of Spring Charging Motor: | 250 W |
| Voltage of O-C Wire: | AC (DC) 110 / 230 V |
| Rated Insulation Level: | 12 / 28 / 75 KV |
|
