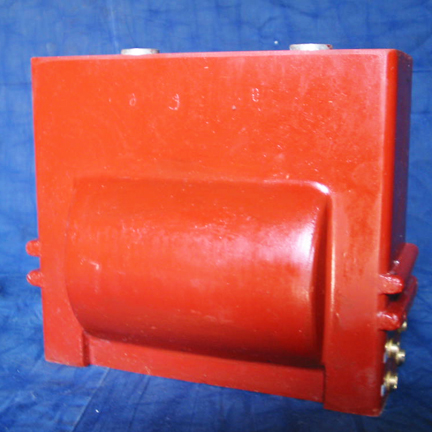

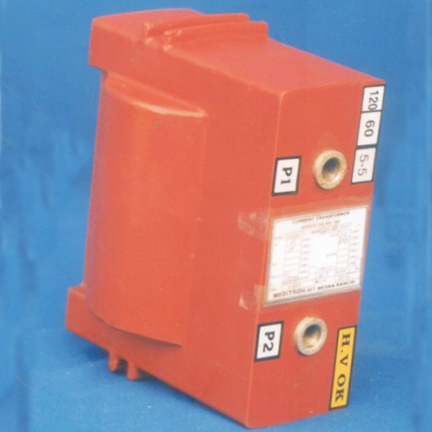

11 KV Resin Cast Current Transformer: :

-   Rated Voltage - 11 KV.

-   Frequency - 50 Hz.

-   Primary Current - As per customer's requirement.

-   Secondary Current - As per customer's requirement.

-   No. of Cores - One/Two.

-   Ratio - As per customer's requirement.

-   Class - 1 & 5P 10

-   Short Time Current - 25 KA Max.

-   Applicable Standard - IS 2705 - 1992.

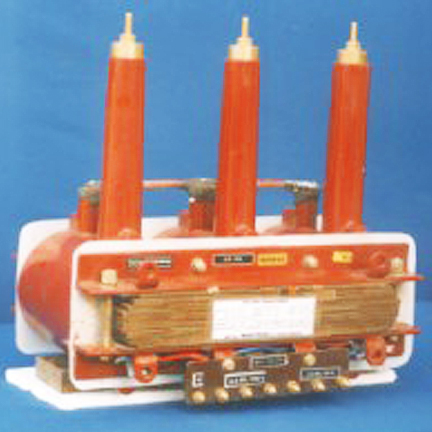

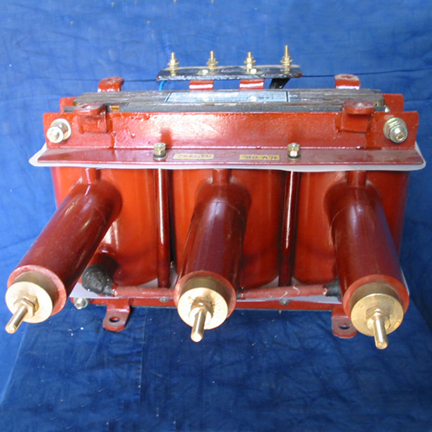

11 KV Resin Cast Potential Transformer: :

-   Rated Voltage - 11 KV.

-   Insulation Voltage - 28/35/75 KVp.

-   Primary Current - As per customer's requirement.

-   Phase - 1/3 Phase.

-   Frequency - 50 Hz.

-   Ratio - As per customer's requirement.

-   Burden - As per customer's requirement.

-   Ref. Standard - IS-3156-1992.

-   Insulation Class - F.
