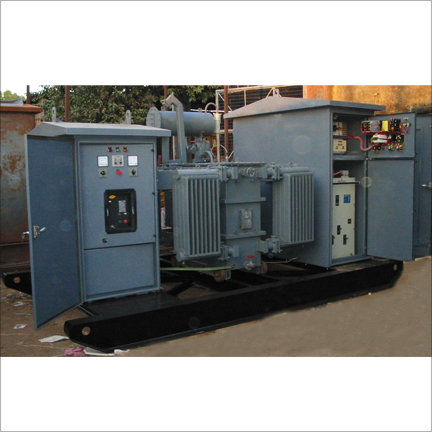

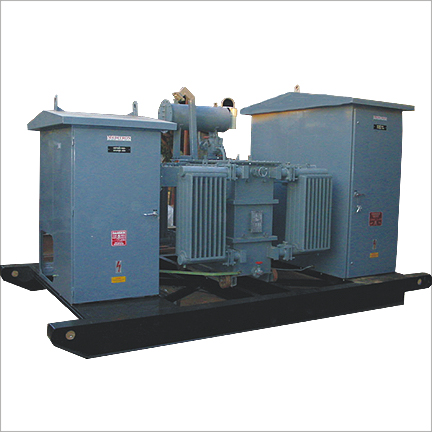

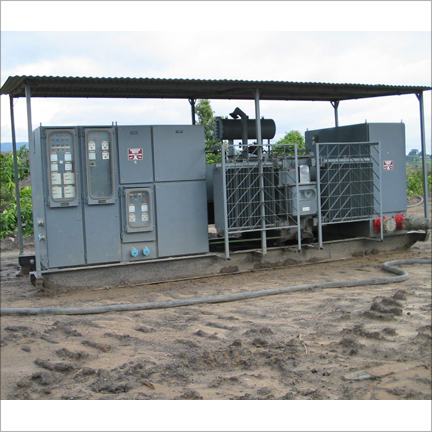

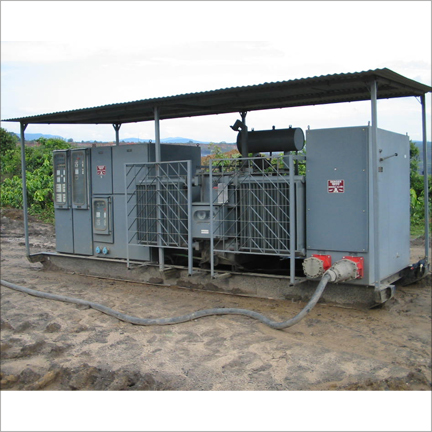

-   The system consists of incoming HT switch gear, step down transformer and LT side distribution board on a skid that can be moved from place to place. Suitable for utilities and mining application.

-   HT Side Voltage: 3.3KV/6.6KV/11KV [3PH].

-   HT Side Breaker: VCB.

-   Current of VCB: 400, 630, 800, 1250 A.

-   Transformer Rating: As Per Customer's Requirement.

-   LT Side Voltage: 415V, 3PH/ As Per Customer's Requirement.
-   Short Circuit Level: 50KA for LT & 26.3KA max. for HT.
-   LT Side Switch Gear: ACB/MCCB/SFU (As Per Customer's Requirement).
-   H T Side Feeders: Starters 3.3/6.6KV - Both in Fixed and Draw Out execution.
-   Can also be designed and manufactured as per customer's specification.
